The Principle Of Induction Heating Pipe Bending Machine 返回首页

The Induction Heating Pipe Bending Machine works by heating the steel pipe by the intermediate frequency power supply, and simultaneously pushing the steel pipe at a constant speed, so that the steel pipe of the heating part walks along a preset track to form a curved pipe having a certain radius of curvature and an angle.

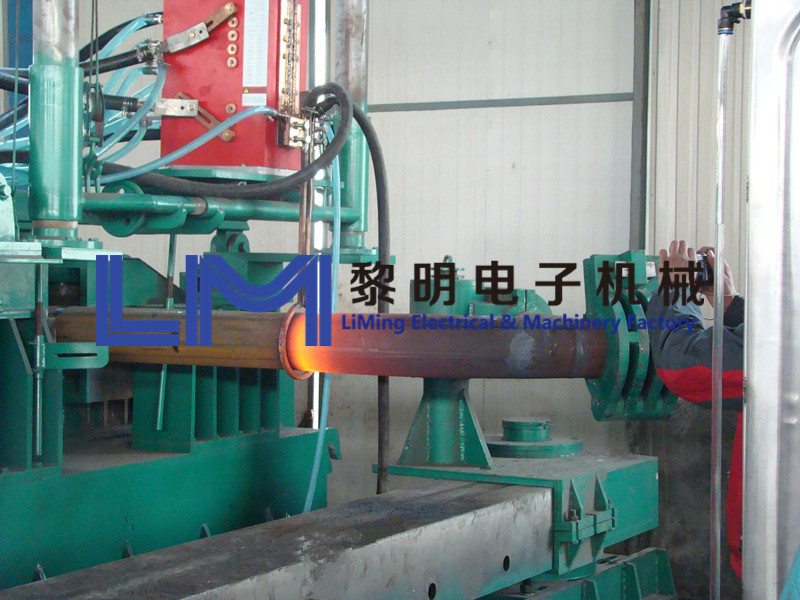

Induction Heating Pipe Bending Machine

Induction Heating Pipe Bending Machine


Firstly, the steel pipe is installed in position, and the bending radius is adjusted by the screw nut transmission device on the rocker arm rotating device. The medium frequency induction heating coil is used to bend the steel pipe to a certain temperature and then bend, and the hydraulic power is used when bending, and the car will be driven by the trolley. The steel pipe advances forward, and the platform has four waist wheels to hold the steel pipe, which is deformed and bent along the adjusted bending radius at the heating place, and the steel pipe is deformed and then sprayed with water to cool, thereby obtaining the required pipe fittings.


The induction heating pipe bending machine prevents the steel pipe from being elliptical after heating.
